2-Way Ball Valves with SAE & NPT Connections

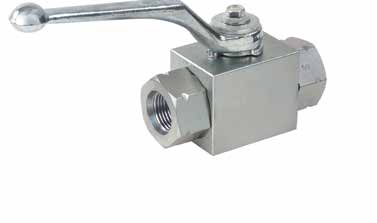

BVB2 Series Block Housing

high pressure ball valve

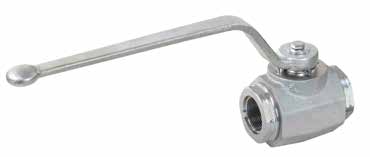

BVF2 Series Forged Housing

high pressure ball valve

FEATURES

  • 1/4″ – 2″ Full Port Design
  • NPT or SAE O-ring connections
  • Polyacetal ball seals (standard)
  • Fluorocarbon Elastomer (Viton®) O-rings (standard)
  • Carbon steel housing
  • Block Housing — sizes 06 – 25
  • Forged housing — sizes 32 – 50
  • Operating pressure to 7250 psi depending on valve size and seal materials selected
  • Temp range: -4°F to 212°F [-20°C to 100°C] with standard materials.
