Suction Line Indicator Series MF–360 & ML–360

FEATURES

Provides visual warning signal of excessive vacuum condition at pump inlet caused by:

  • contaminated filter element
  • low fluid temperature
  • high fluid viscosity
  • impending opening of filter bypass valve

DESCRIPTION

The MF/ML-360 indicators have a red alert sleeve visible from a full 360°. In the red alert position, the ML-360 remains locked during system shutdown. The MF-360 does not hold the red alert during system shutdown. Mounted near the pump inlet, Model MF/ML- 360 indicators require no maintenance or calibration, and they resist vibrations and shocks.

SPECIFICATIONS

Operating Temperature:
-40° F (-40° C) to 200° F (93° C) continuous
Housing:
Nickel plated cold rolled steel
Sight Dome:
Transparent, high impact polycarbonate

suction 1
Vacuum Settings Available
2.5” Hg
5.5” Hg
9.5” Hg
13.0” Hg

suction 2
Vacuum Settings Available
2.5” Hg
5.5” Hg
9.5” Hg
13.0” Hg

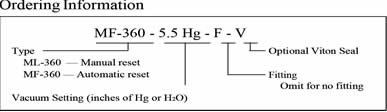

ordering info

diagram 1
